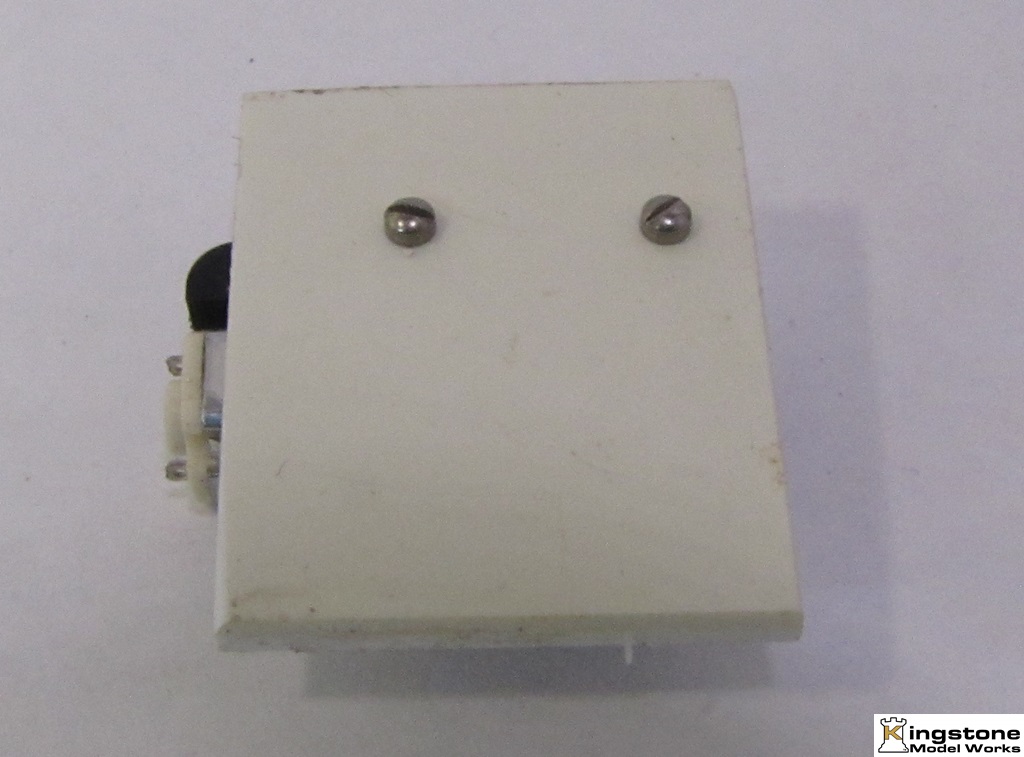

Two 2-56 screws hold the motor to the styrene mounting plate. |
 |

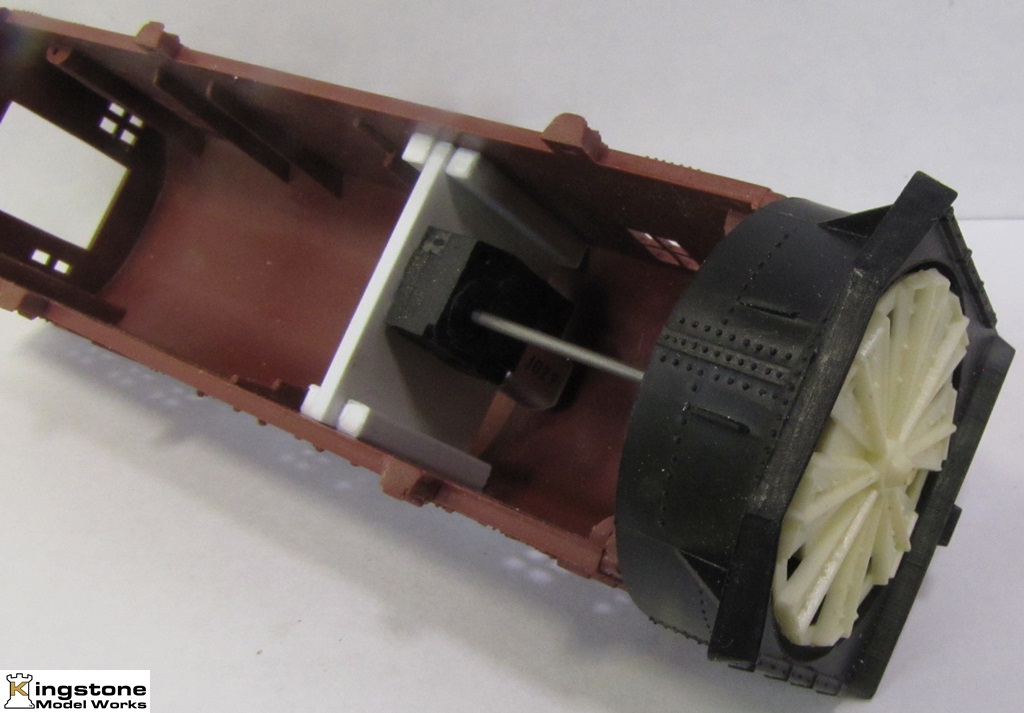

Showing the shaft has been cut to proper length. |
 |

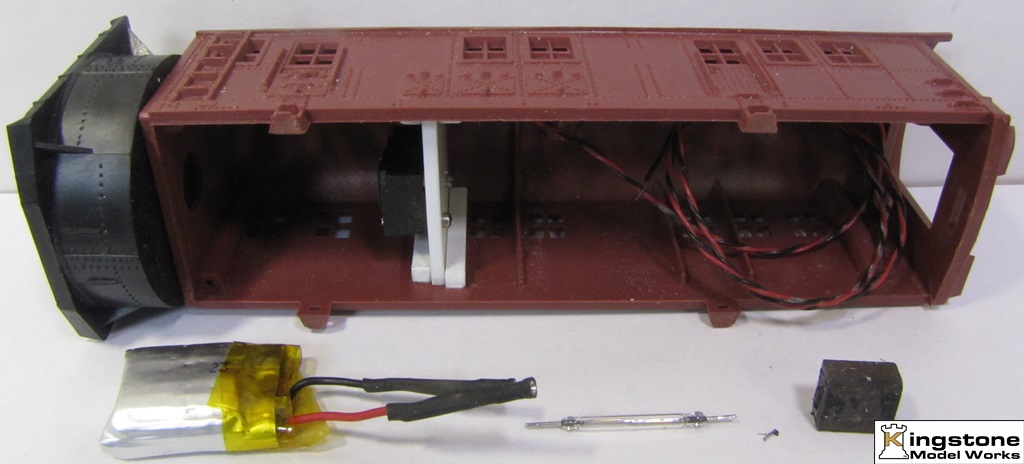

LiPo battery with push pin connector, magnetic reed switch and magnet, all used to operate the motor. Motor has also been wired up. |
 |

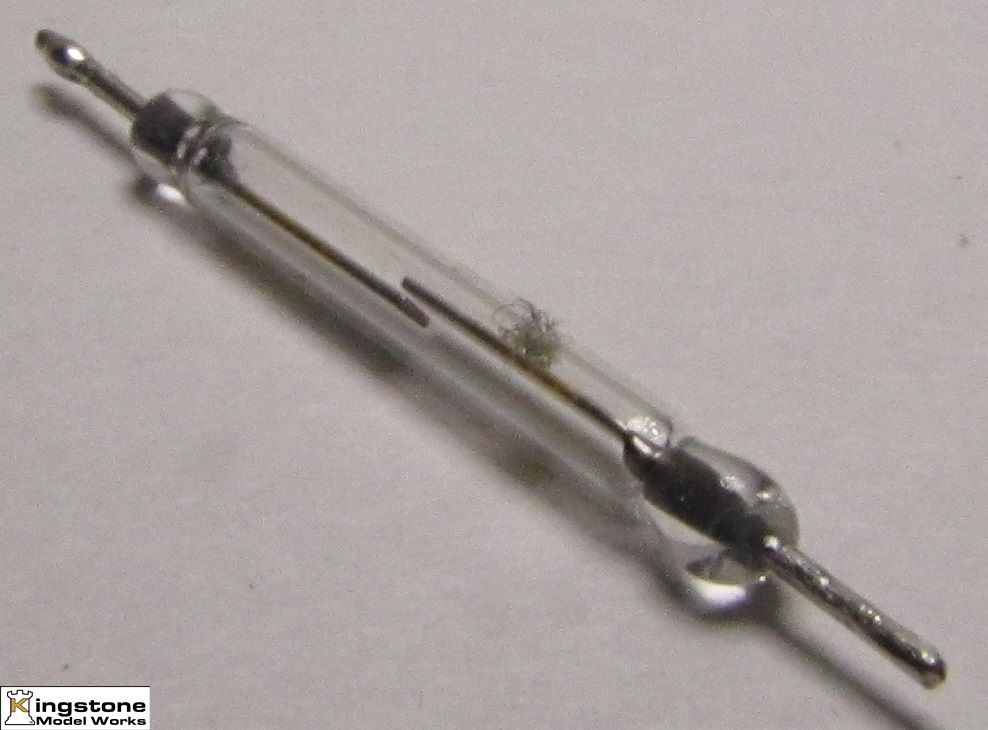

Close up of magnetic reed switch. |
 |

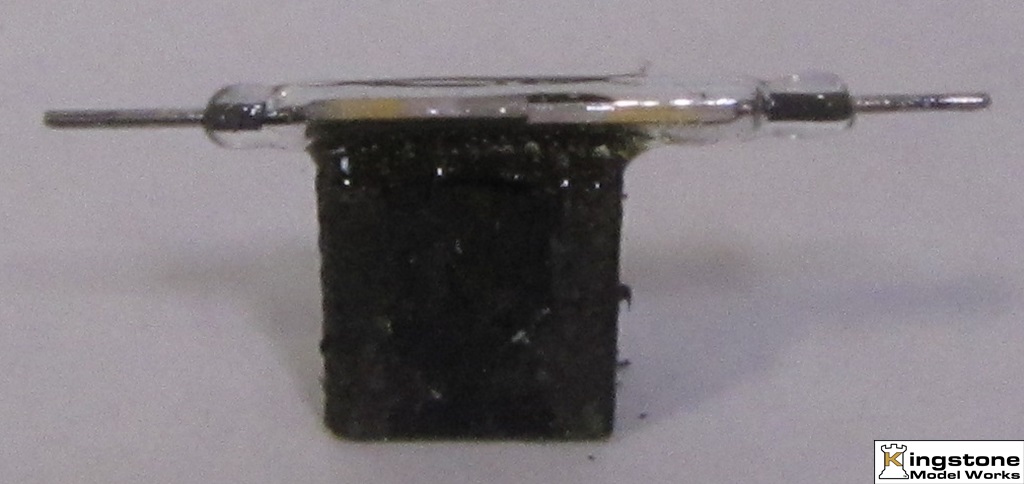

Testing switch. Magnet should close contacts. |
 |

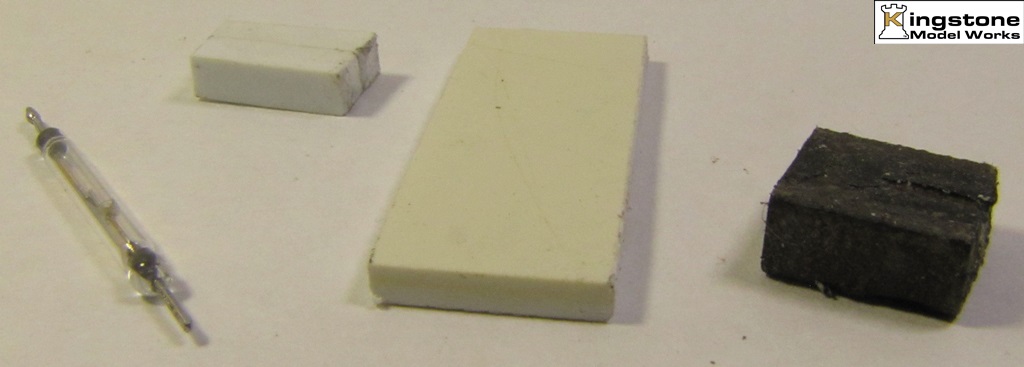

Parts for mounting reed switch and magnet. |
