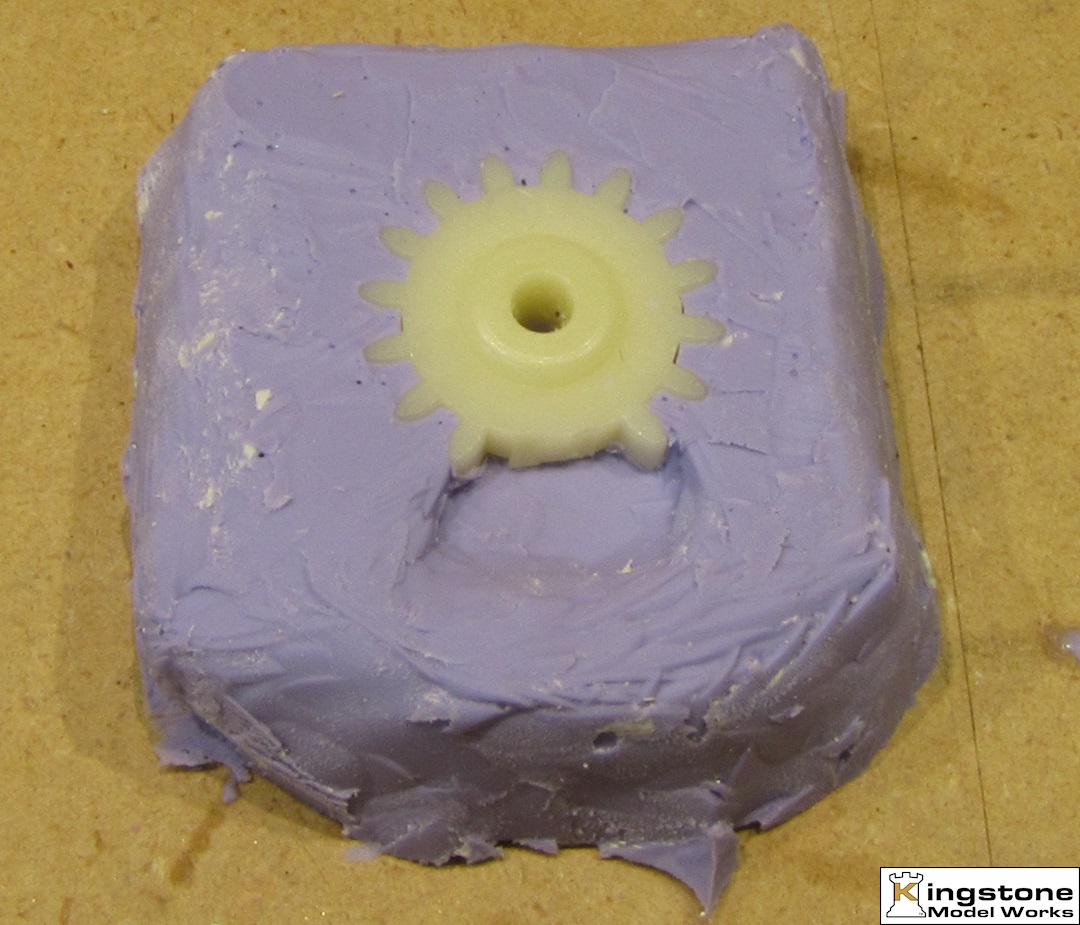

Try #2. Made a smaller mold. |
 |

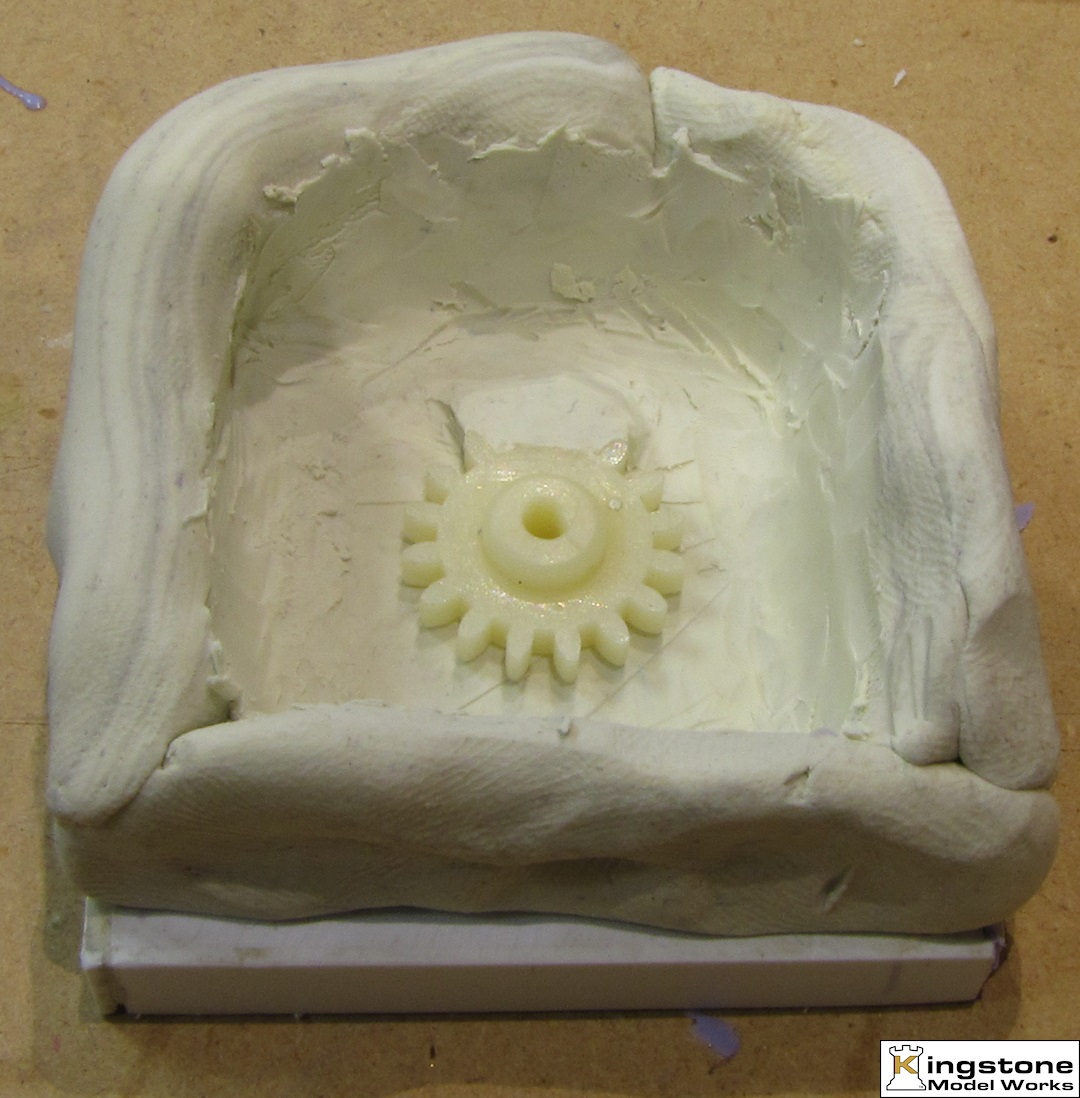

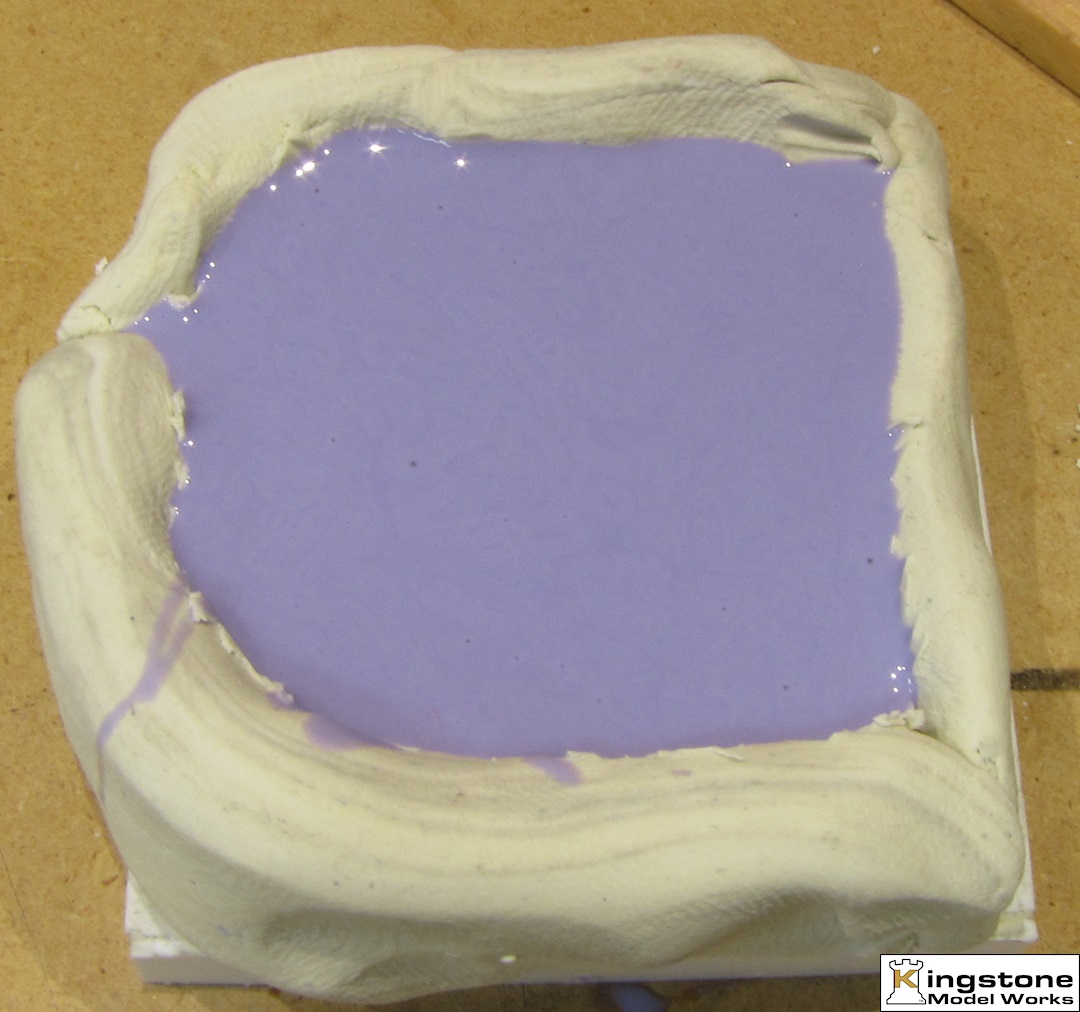

Filled with liquid rubber. |
 |

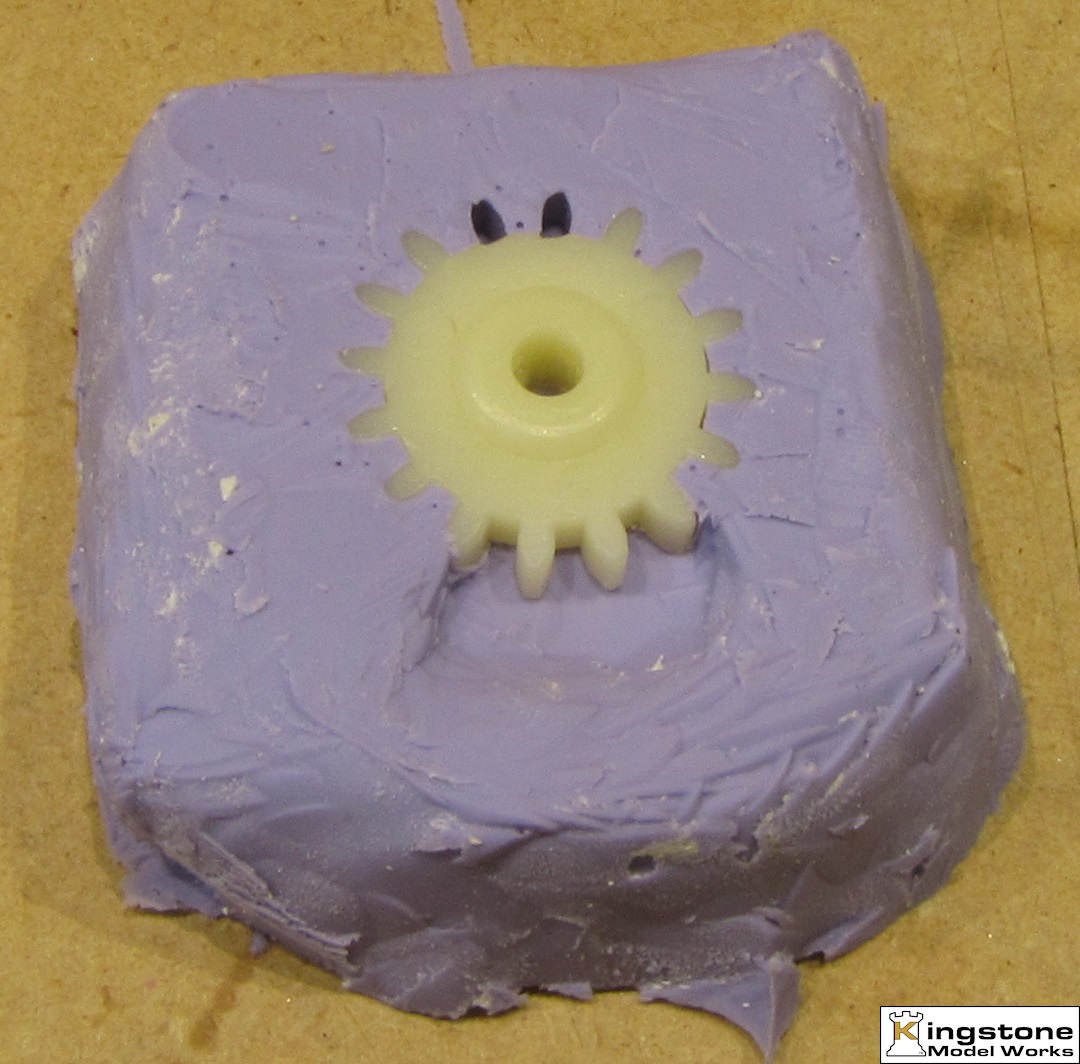

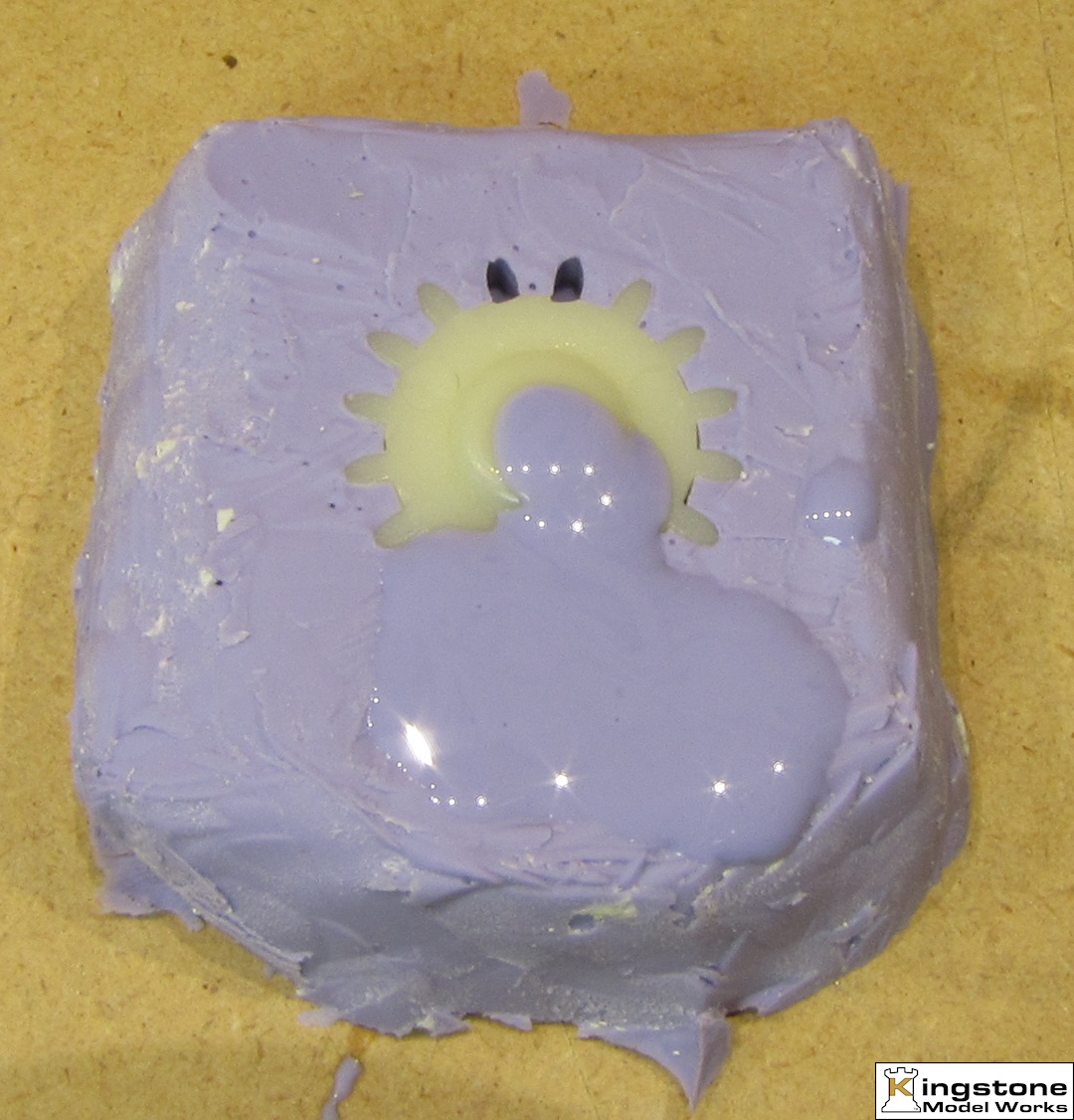

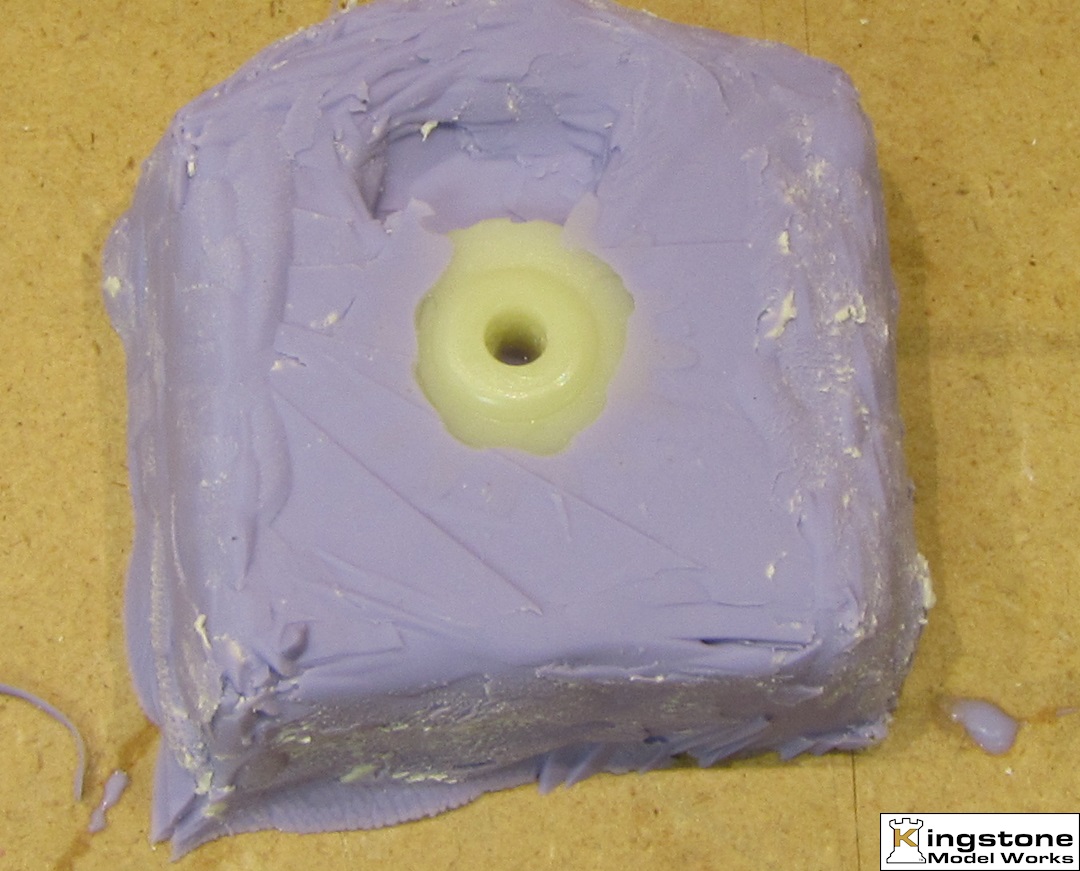

The cavity for the missing teeth. |
 |
 |

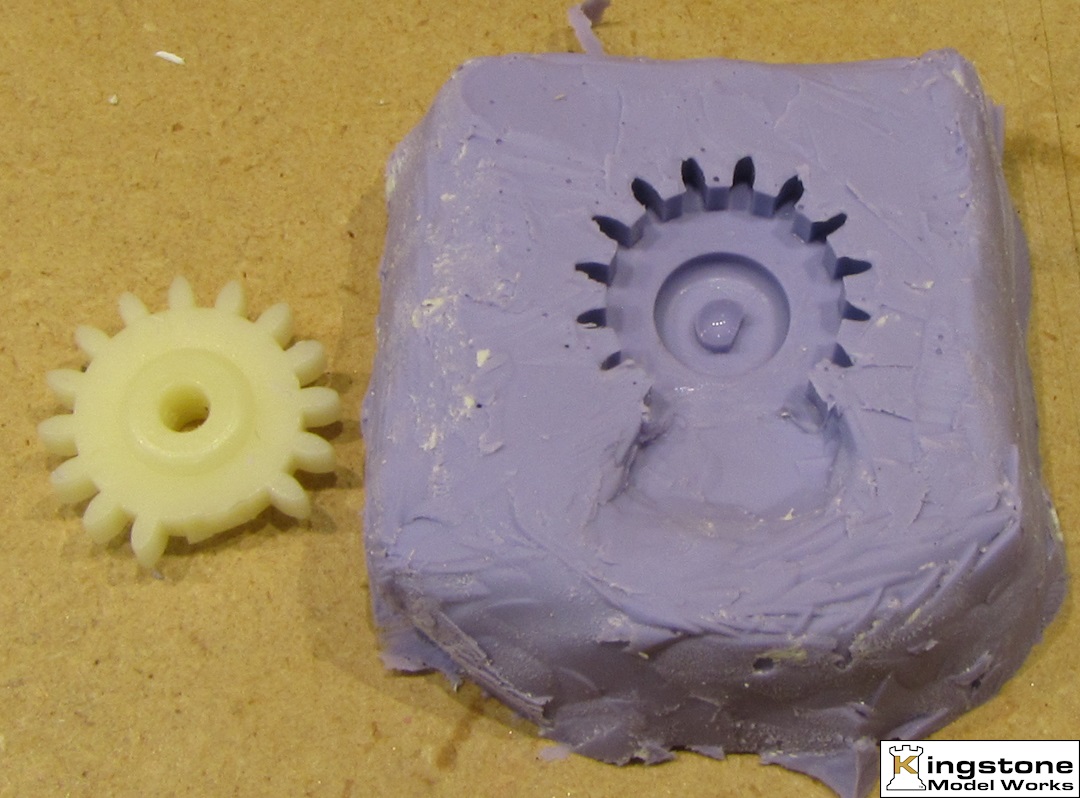

Nice clean mold. The rubber for casting the bore will be filled next. |
 |

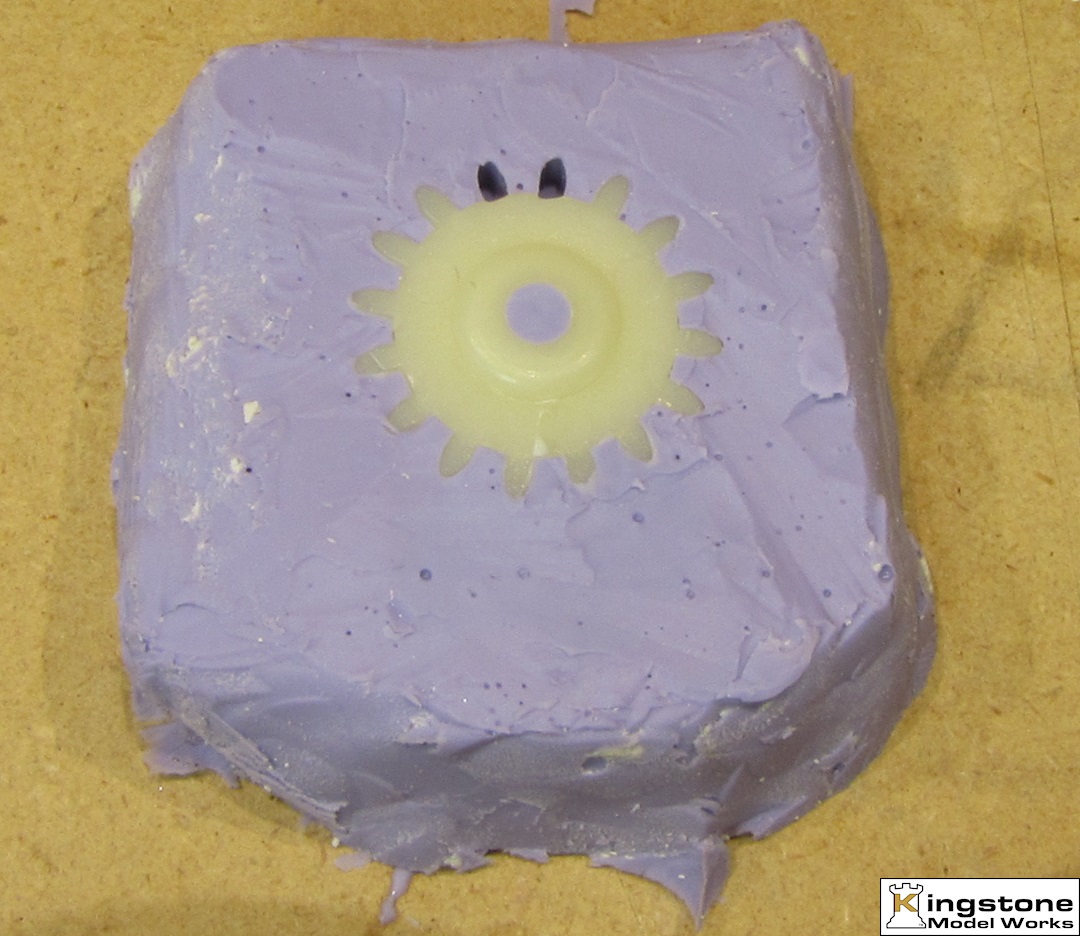

The gear is turned 180 degrees so new teeth cavities will be made in the mold. |
 |
Liquid rubber is poured on to the gear and the bore of the gear is filled. |
 |
Once the rubber has cured (over night) the top is shaved off to reveal the gear. |
 |

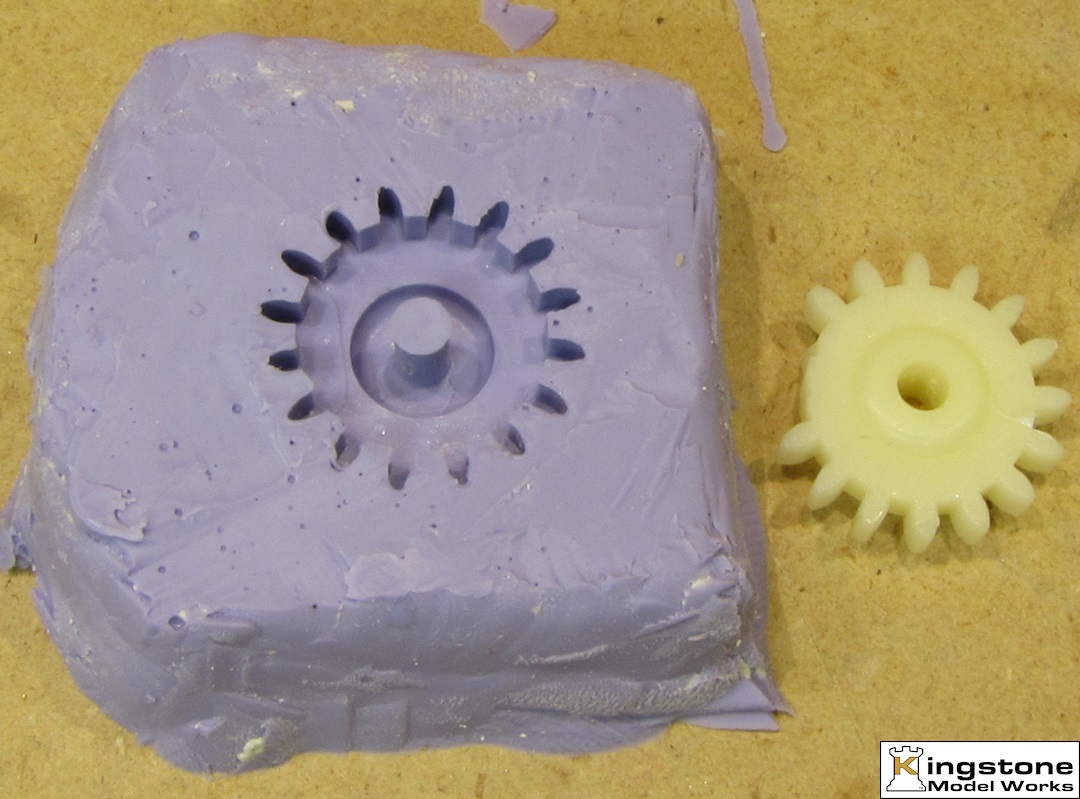

The finished mold. |
 |

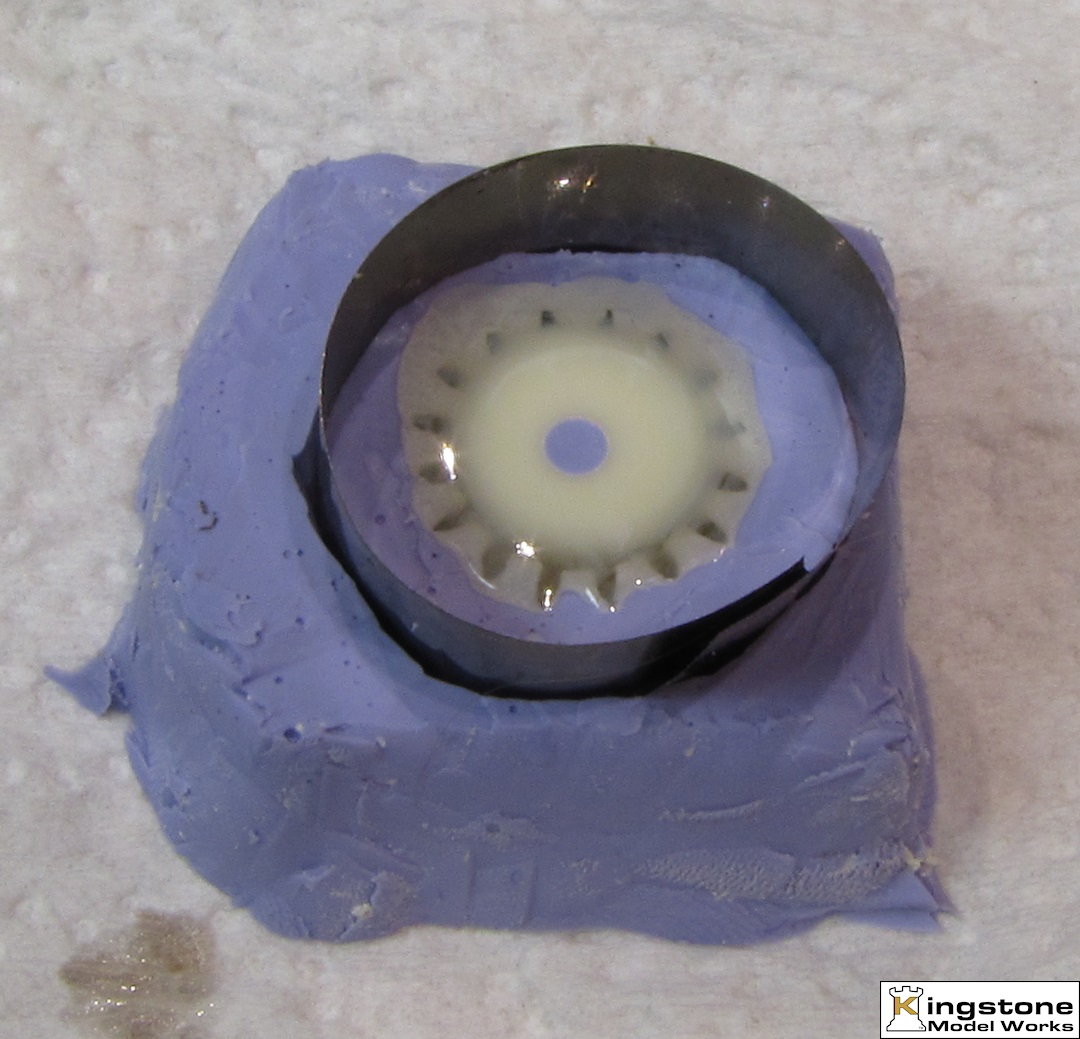

A small dam is built up around to contain the resin. Not needed I discovered. |
 |
The finish cast gear. |
 |

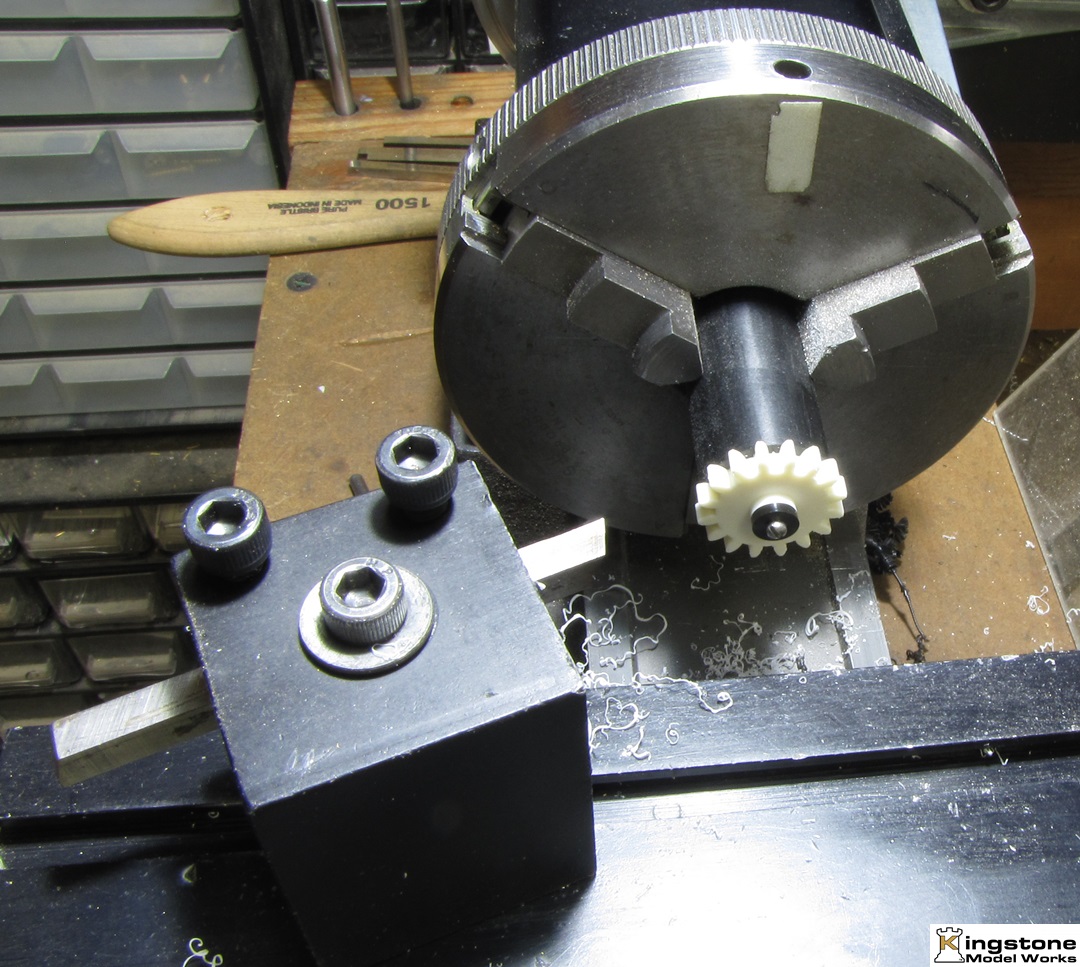

I made a fixture to hold the gear on the lathe to clean up the back side of the gear. |
 |

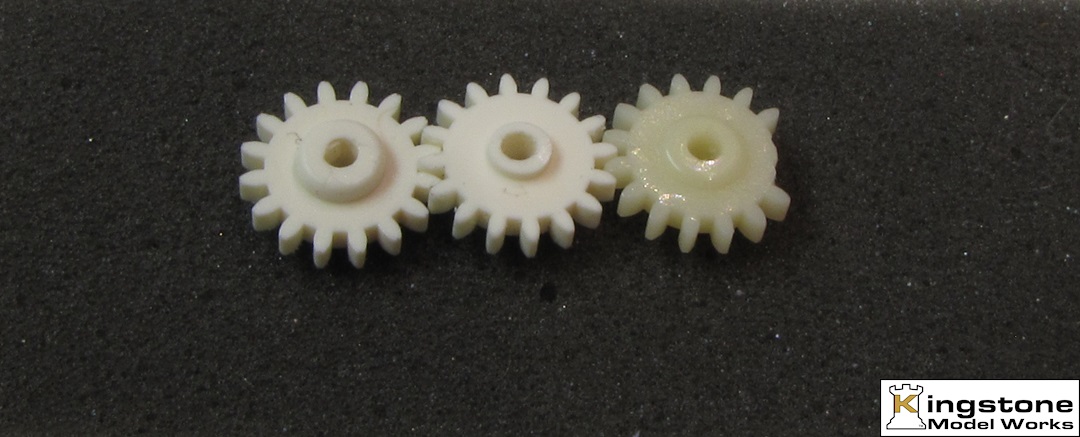

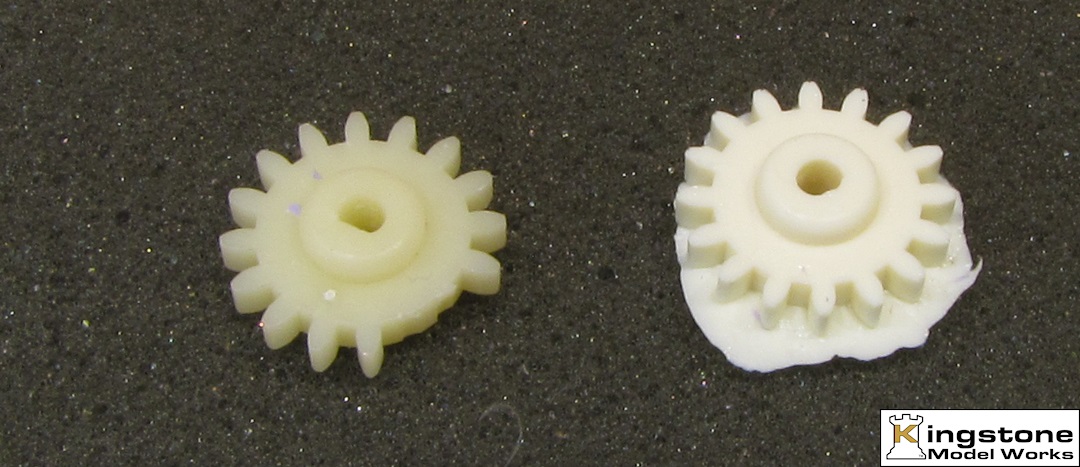

Two new gears identical to the one with two teeth missing. |
