Projections all cut off, ready for a file job. |
 |

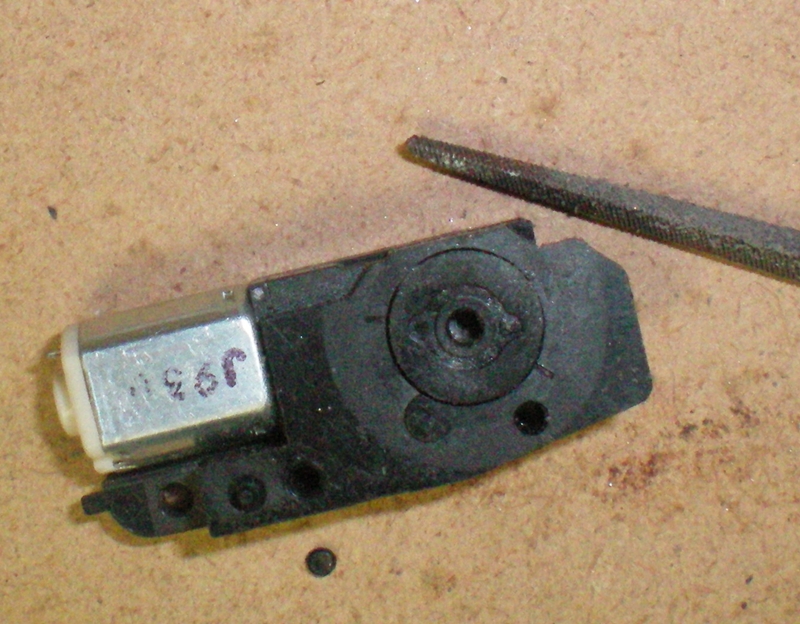

Filed nice and smooth. |
 |

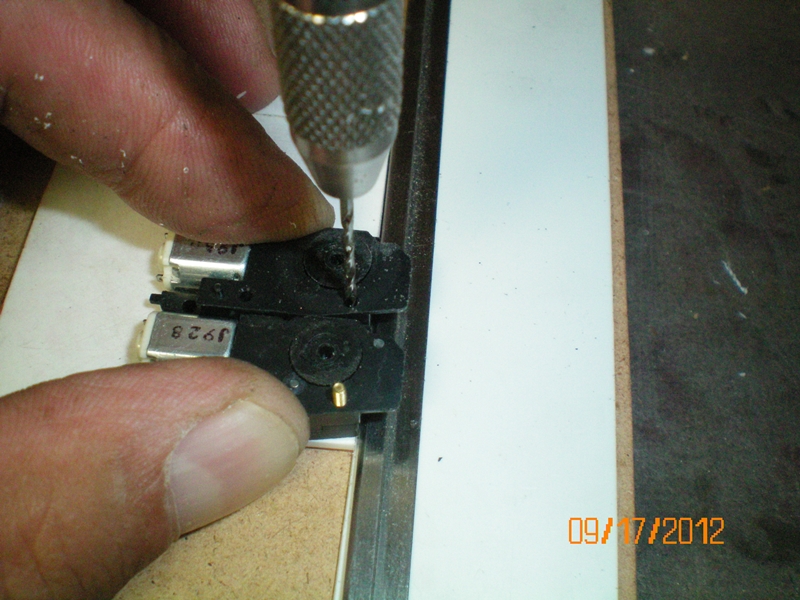

Using the motor for a template. Drilling a hole with tap drill size drill. |
 |

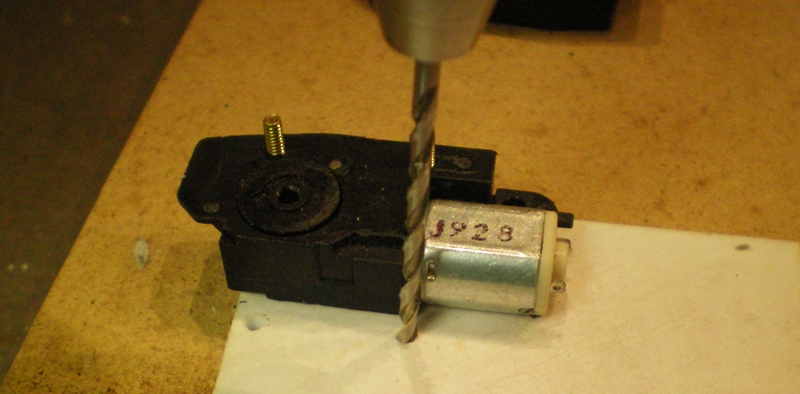

Drilling 0-80 clearance holes. |
 |

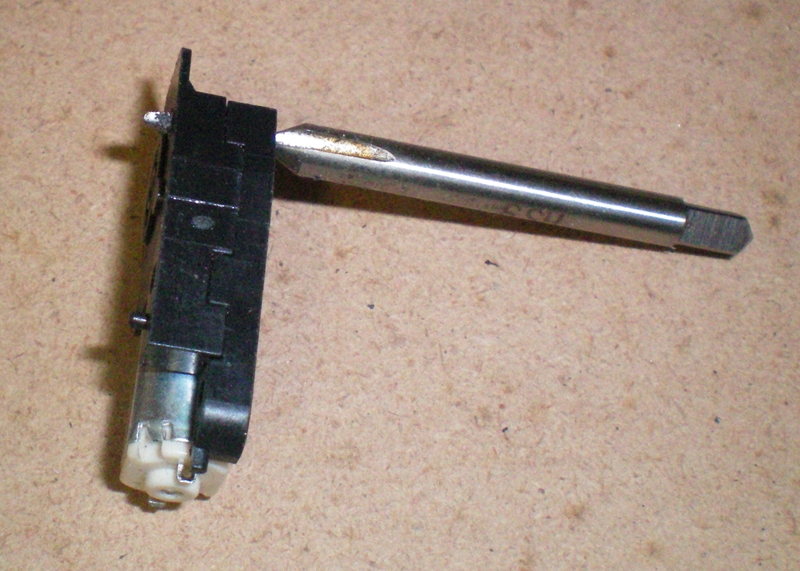

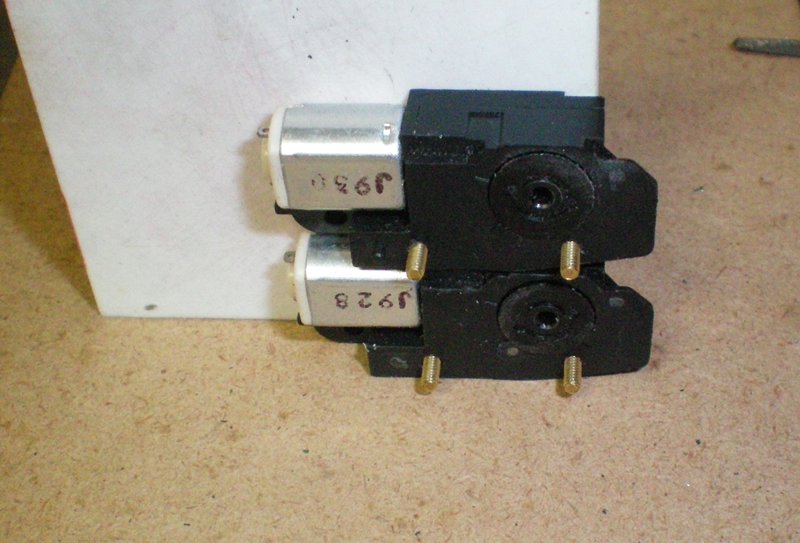

Tapping the holes in the motor to 0-80 threads. |
 |

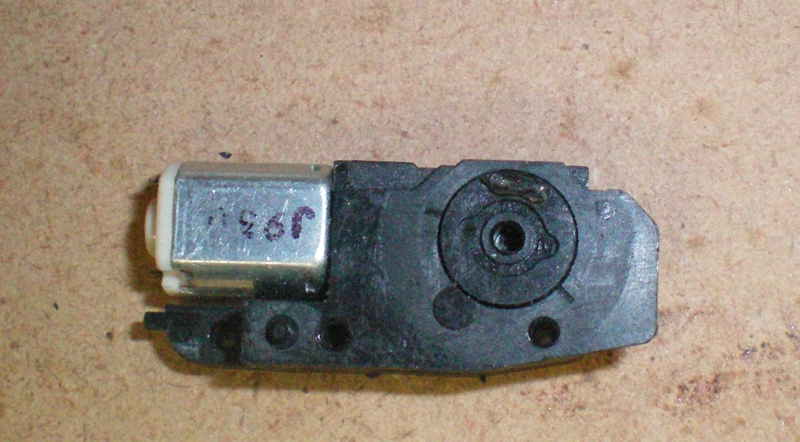

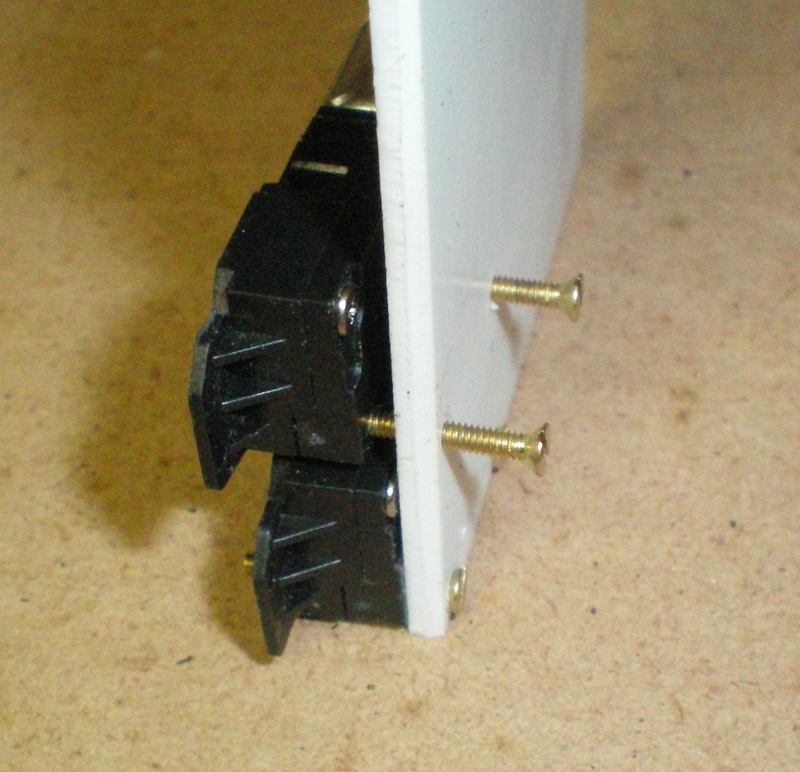

Test fitting the motor with 0-80 flat head screws. |
 |
The screw will be counter sunk in the back and then the access cut off and filed smooth. |
 |

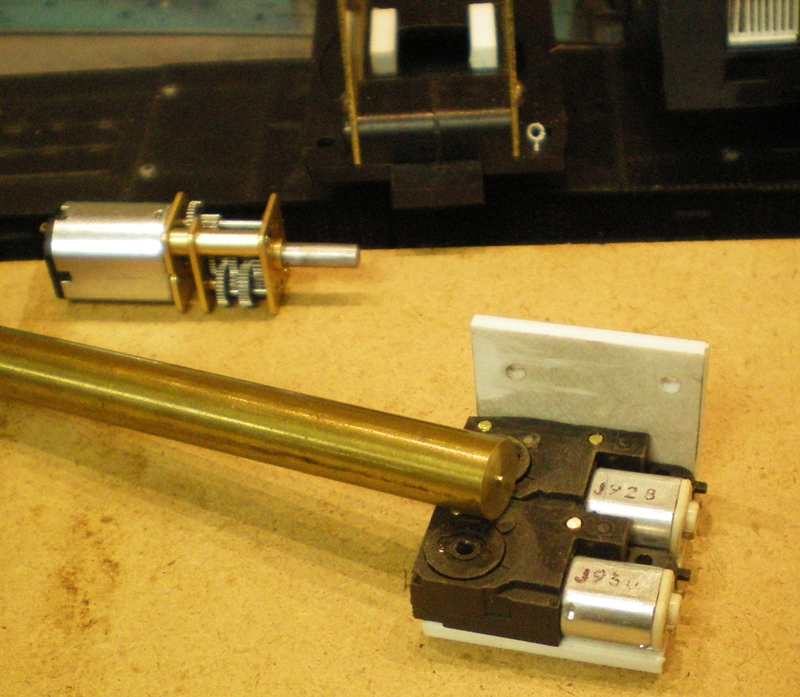

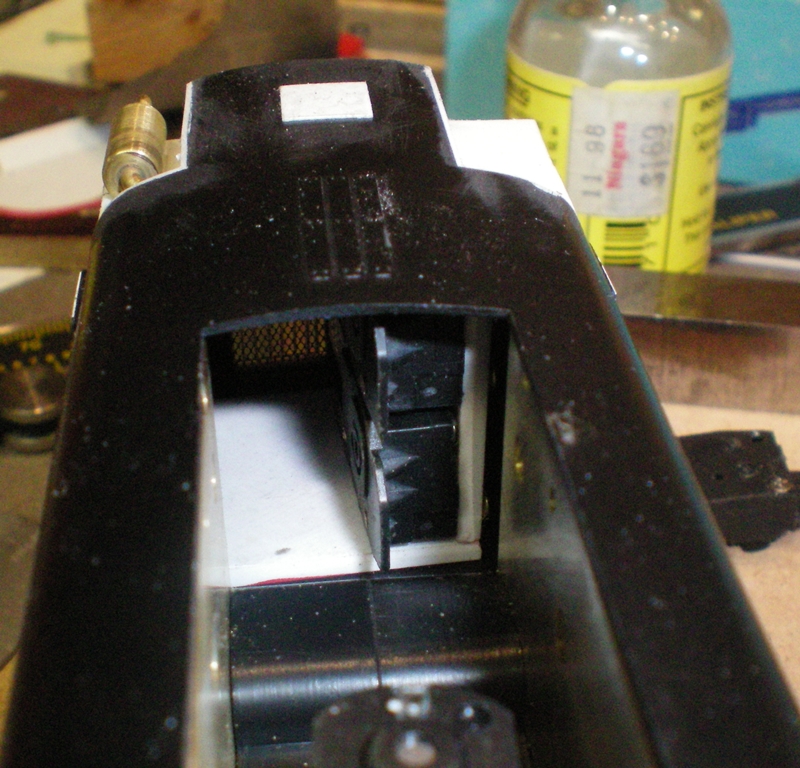

Test fitting the motor mount with the shell on. |
 |

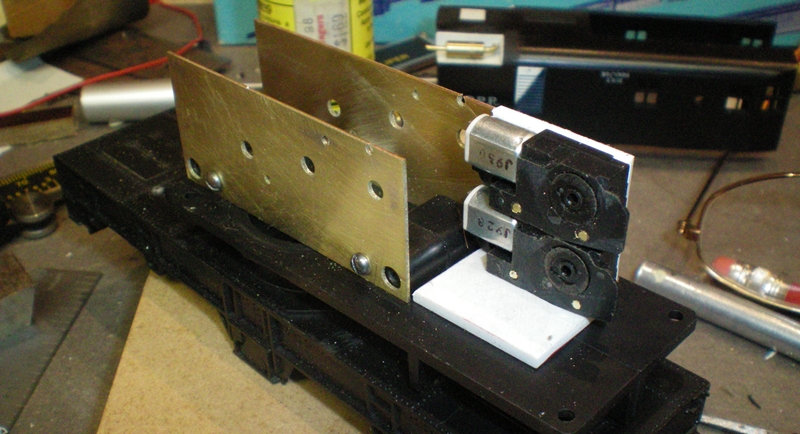

Test fitting the boom and hook motor mount. Mount not yet fastened to swivel base. |
 |

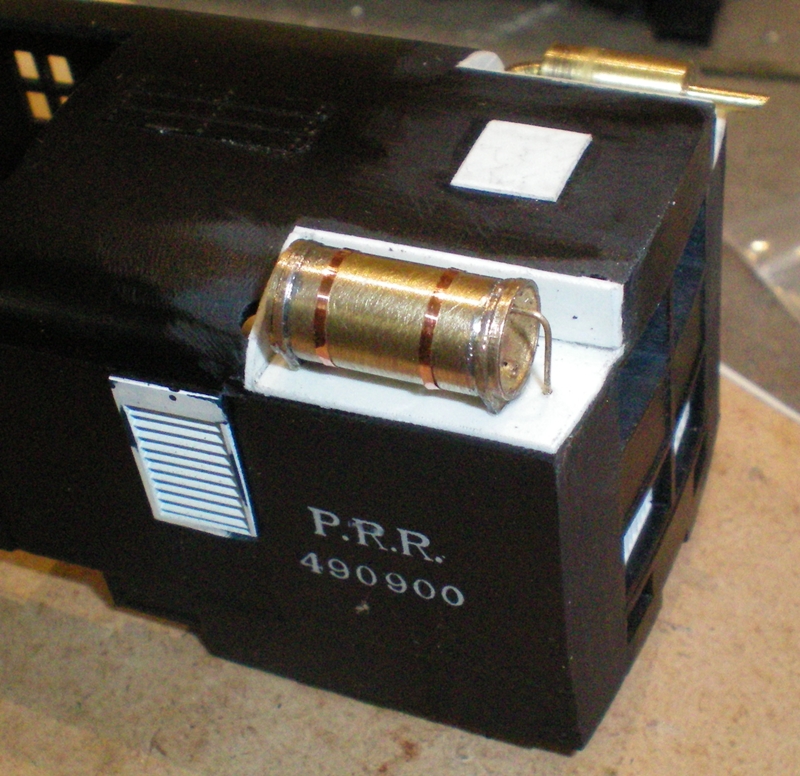

Tank mounted and pipe added. The copper straps are from a copper scourer. |
 |

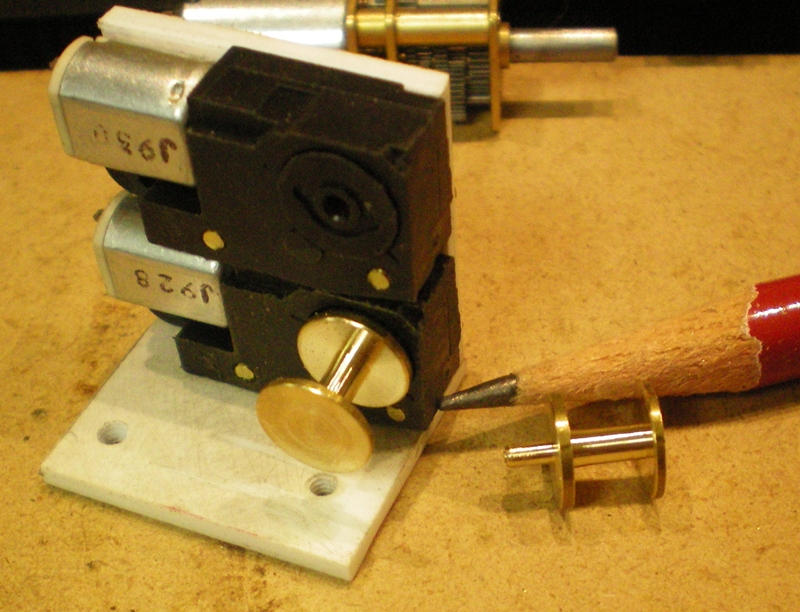

Winch spools turned from 5/16" brass rod. |
 |
I didn't follow any dimensions. The only thing I measured was the 1/16" shaft that fits in the hole on the motor. The length was eye balled. |
